This article introduces the setting method of "analog numeric keypad", which is suitable for finding the corresponding configuration barcode and completing parameter adjustment.
Applicable to:
E900
Questions
- How to set up an analog numeric keypad?
- Where is the analog numeric keypad configuration barcode?
- How to adjust the parameters of the analog numeric keypad?
Resolution / Answer
This article introduces the use and configuration method of "analog numeric keypad". Usually refer to this article when you need to change the default behavior of the device, adapt to the business system, or find the corresponding configuration barcode.
__Number characters use the numeric keypad__
Scan the following barcode to configure __numeric characters use the numeric keypad__.
If this function is not turned on, all output will be output according to the corresponding key value of the main keyboard.
After turning on this function, if the barcode data read by the scanner contains the numbers "0~9", the virtual keyboard will output the corresponding key value of the numeric keypad.

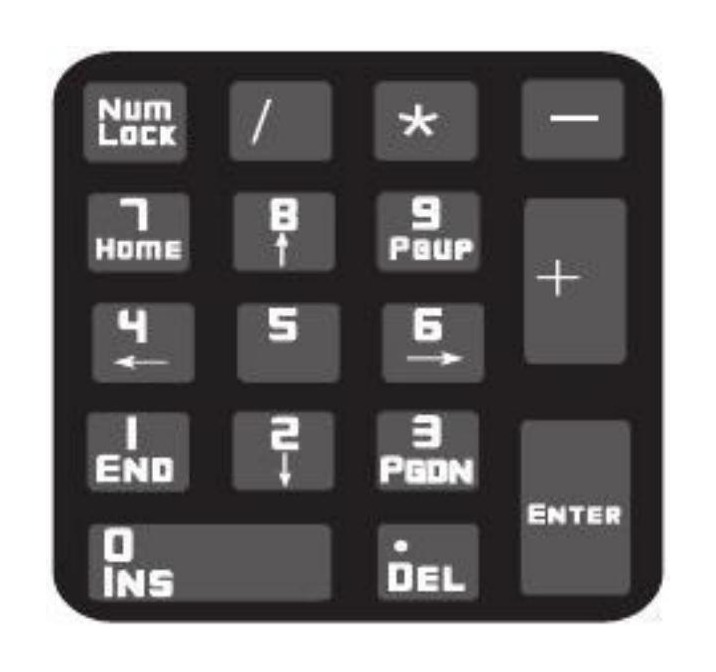

The numeric keypad, as shown in the picture above, is generally located on the far right side of the keyboard. The Num Lock in the upper left corner controls whether its key value is a number or a function key. The virtual keyboard does not independently control the Num Lock state, but is consistent with the Num Lock state of the actual keyboard of the host. Therefore, if the actual keyboard of the host has Num Lock turned off (the Num Lock light is off), after scanning the virtual numeric keypad, the function keys will be output instead of numbers.
**[Close]
Scan the following barcode to configure **[Close].
[Open]
Scan the following barcode to [Open].
Before using this function, be sure to confirm the Num Lock status of the host at this time. If the "Simulate character input" function is turned on, this function is invalid.
After turning on the "analog numeric keypad", the scanner reads the barcode with the content "A4.5".
If the host "Num Lock" is on, the host program will receive the string "A4.5".
If the host "Num Lock" is turned off, the host program will receive the string ".A": first get the "A" key, this character is not in the numeric key function area, so it is sent normally;
Secondly, get the function key corresponding to the number "4" - the instruction to move the cursor to the left;
Finally, we get the "." key, and this character is sent normally;
Since the number "5" has no corresponding function key, no key input is generated.
__The characters '+', '-', '*', '/' use the numeric keypad__
**[Close]
Scan the following barcode to configure **[Close].
[Open]
Scan the following barcode to [Open].
If this does not resolve the issue, please reset the barcode scanner or contact us. Click here to find your barcode scanner model and perform the reset.
