This article introduces the setting method of "Center Area", which is suitable for finding the corresponding configuration barcode and completing parameter adjustment.
Applicable to:
E900
Questions
- How to set the center area?
- Where is the central locale code?
- How to adjust the central area parameters?
Resolution / Answer
This article introduces the purpose and configuration method of "Central Area". Usually refer to this article when you need to change the default behavior of the device, adapt to the business system, or find the corresponding configuration barcode.
The size of the area is set in proportion to the width and height of the image. It is necessary to set the top, bottom, left, and right ranges of the central area. The setting range is 0 to 100. The bottom end must be greater than the top end, and the right end must be greater than the left end. Default: Top is 40%, Bottom is 60%, Left is 40%, Right is 60%.
[Top of central area]
Scan the following barcode to configure [top of center area].
[Bottom of center area]
Scan the following barcode to configure [bottom of center area].
[Left side of center area]
Scan the following barcode to configure [left side of center area].
[right side of center area]
Scan the following barcode to configure [right side of center area].

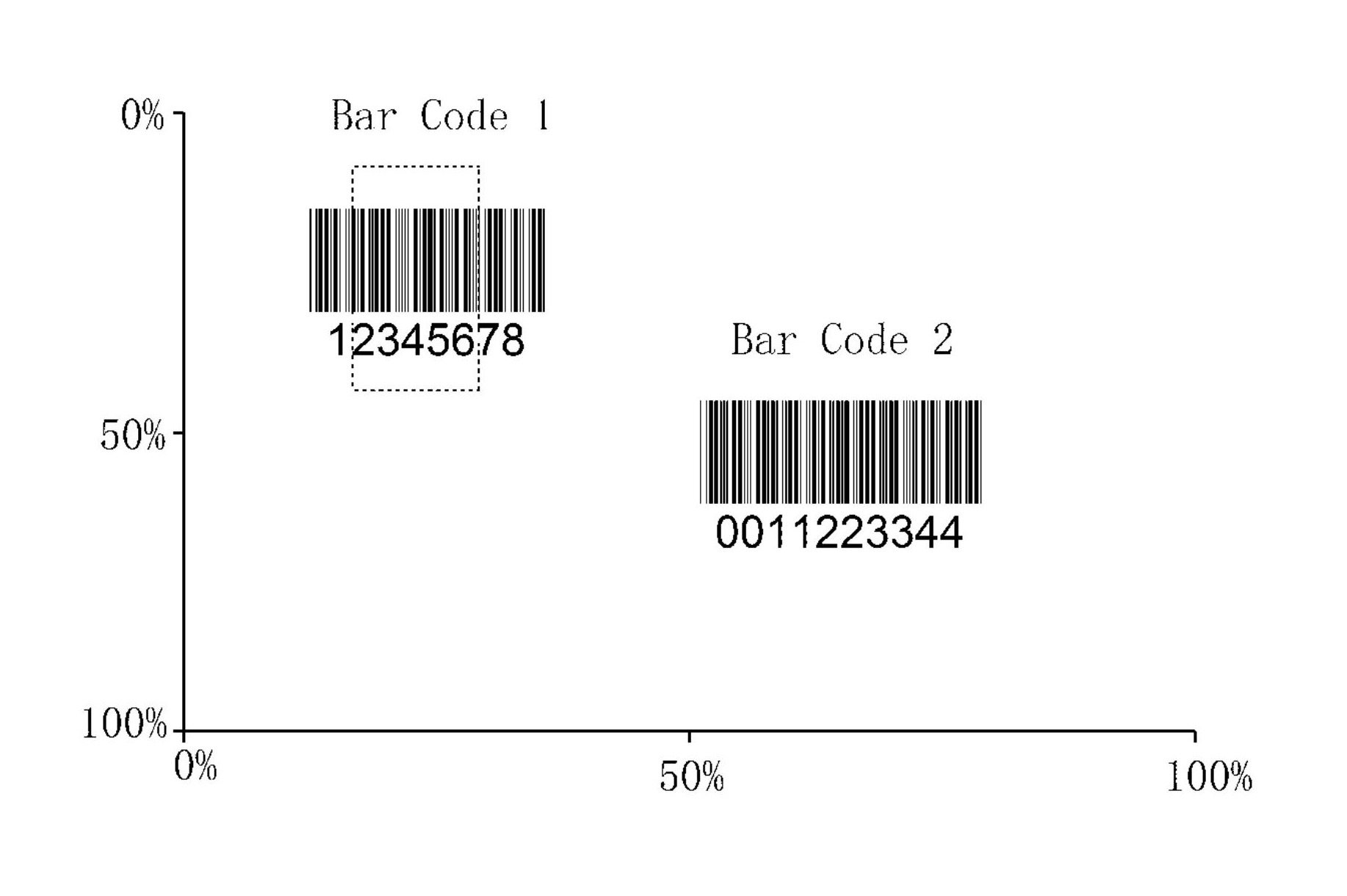

Set to read only Barcode 1 in the picture above. The top of the center area is 10, the bottom is 45, the left is 15, and the right is 30. You can read the following barcodes in order.
Scan the following barcode to set it to read only Barcode 1 in the picture above. The top of the center area is 10, the bottom is 45, the left is 15, and the right is 30. You can read the following barcodes in sequence to set.
- Read "Startup Settings"
- Read "Top of Center Area"
- Data code "0" (see Appendix - Data Code)
- Read "Save" (see Appendix - Save or Cancel)
- Read "bottom of center area"
- Data code "4", "5" (see Appendix - Data Code)
- Read "Save" (see Appendix - Save or Cancel)
- Read "Top of Center Area"
- Data code "1", "0" (see Appendix - Data Code)
- Read "Save" (see Appendix - Save or Cancel)
- Read "left side of center area"
- Data code "0" (see Appendix - Data Code)
- Read "Save" (see Appendix - Save or Cancel)
- Read "right side of center area"
- Data code "3", "0" (see Appendix - Data Code)
- Read "Save" (see Appendix - Save or Cancel)
- Read "left side of center area"
- Data code "1", "5" (see Appendix - Data Code)
- Read "Save" (see Appendix - Save or Cancel)
- Read "Exit Settings"
If this does not resolve the issue, please reset the barcode scanner or contact us. Click here to find your barcode scanner model and perform the reset.
